I need help with conditional Icons/Pictures

[lbenjaminl]

I have a Access 2016 DB. I am working on a Form that has a master/child relationship. This works perfectly. The subform works perfectly and loads the filtered rows as designed. The problem that I am tring to solve is that I have 9 Yes/No (-1/0) ControlSource fields. I am trying to relate each of those fields to a icon. When the value is True, I want the imgGreenCheck to display. When the value is False, I want the imgOrangeCheck to display. I have hidden both the Green and Orange check images on the row (invisible) and have seeded the Columns for the 9 Control Sources with their ownGreen images.

I can't seem to get the images to update. I have tried; updating the fields in the OnLoad event, OnCurrent event. I have placed individual txtboxes on the row for each of the control source fields that perform the controlsource calculation (=IIf([MenuDetailPotassium]=-1,[imgPotassium].[Picture]=[imgGreen.[Picture],[imgPotassium].[Picture] = [imgOrange].[Picture]))

I don't know what else to try.

Lynda



[bob fitz]

Can you post a copy of the db



[lbenjaminl]

Can you post a copy of the db



[lbenjaminl]

I might as well add: I also want to modify a table field to become a weblink if another column (defined as a link) is populated. Any clue? I dont want to have a naked web address.



[CJ_London]

your form has a query using multiple tables which makes it not updateable. General rule is one form, one table, sometimes you can get away with 2 and sometimes you can change the recordset type to dynaset - inconsistent updates. But not in this case.

Modify your form design to have another subform. Put the description etc in the mainform part and the tickboxes in the new subform



[bob fitz]

Something like:
If [MenuDetailPhosphorous] = -1 Then
[imgPhosphorous].[Visible] = -1
Else
[imgPhosphorous].[Visible] = 0
End If
for each control, in the Current event of the form should work.



[bob fitz]

Forgot to mention that you'll also have to remove: imgPhosphorous from the control source of the control called: imgPhosphorous



[lbenjaminl]

your form has a query using multiple tables which makes it not updateable. General rule is one form, one table, sometimes you can get away with 2 and sometimes you can change the recordset type to dynaset - inconsistent updates. But not in this case.

Modify your form design to have another subform. Put the description etc in the mainform part and the tickboxes in the new subform

Both the master form AND the subform are read only. They are not update-able. The tick boxes are a part of the recordset of the subform recordset, as they are normalized attributes of the table.



[lbenjaminl]

I guess I can cheat and make the subform update-able. And then set all the fields to not enabled and not Tab stops. I will try that.



[CJ_London]

as they are normalized attributes of the table.

Well, actually, they are not - because if you ever had to add another one (or remove one) you would need to modify your tables, queries, forms and reports. If it was properly normalised, you would just add one record

But if you don't need the user to change the values, you can leave it as unupdateable

to just display the icons as required you would need code to loop through each field. something like this in the form load event

dim fld as dao.field

for each fld in recordset.fields
    if fld.type=1 then 'is a boolean
        me("img" & replace(fld.name,"MenuDetail","")).picture="GreenCheck32"
    else
         me("img" & replace(fld.name,"MenuDetail","")).picture="OrangeCheck32"
    end if

next ctl



[Knives]

I have a Access 2016 DB. I am working on a Form that has a master/child relationship. This works perfectly. The subform works perfectly and loads the filtered rows as designed. The problem that I am tring to solve is that I have 9 Yes/No (-1/0) ControlSource fields. I am trying to relate each of those fields to a icon. When the value is True, I want the imgGreenCheck to display. When the value is False, I want the imgOrangeCheck to display. I have hidden both the Green and Orange check images on the row (invisible) and have seeded the Columns for the 9 Control Sources with their ownGreen images.

I can't seem to get the images to update. I have tried; updating the fields in the OnLoad event, OnCurrent event. I have placed individual txtboxes on the row for each of the control source fields that perform the controlsource calculation (=IIf([MenuDetailPotassium]=-1,[imgPotassium].[Picture]=[imgGreen.[Picture],[imgPotassium].[Picture] = [imgOrange].[Picture]))

I don't know what else to try.

Lynda

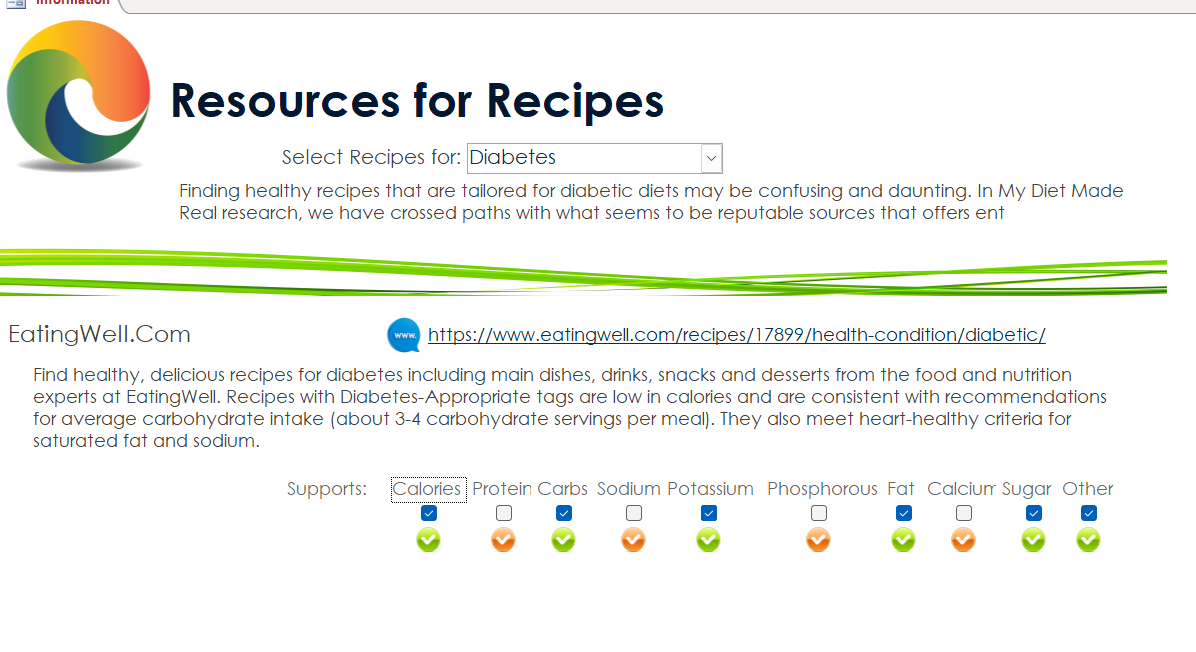

You want it to automatically change depending on the checkboxes, something like this?

I feel bored and so I modified the database file, feel free to use it...
