Quick question regarding navigating records

[Al Kramer]

Hello All

I don't know what this part of the form is called, if it has a name? In any case, it's VERY small. Can i enlarge it, or is there is simple way to replicate its funtionality with controls on the form? Including the search?

Thanx

Al



[DHookom]

Those are Navigation buttons and there are lots of options. Search the web for “ms access custom navigation buttons”



[CJ_London]

It’s called the navigation bar and is not resizeable. You can build your own, numerous examples available if you search for it. Here is an example

How do I recreate the Navigation Buttons in a more visually appealing way?

The Record Navigation Buttons in MS Access are pretty recognisable once you have been using the programme for a while. I would like to change their appearance a little bit and add my own spin / add additional features that I think would be useful. I am aware that the Operating System Theme...

www.access-programmers.co.uk



[The_Doc_Man]

First, what you call that: The navigation buttons. Here is the property of the form that lets you turn that feature on or off. Note that for unbound forms there is nothing to navigate and you might therefore not see them anyway on special unbound forms that do their own navigation. I.e. there might be nothing to turn off for an unbound form.

Form.NavigationButtons property (Access)

Office VBA reference topic

learn.microsoft.com

Second, you can't easily enlarge it. A lot of articles look like they respond to a search for "Resize navigation buttons" but they all (so far as I have found) seem to be resizing the navigation bar, which is a totally different thing.

Third, yes you can "roll your own" version of the navigation buttons and disable the standard set. Your operations would then involve some interaction between your custom buttons and Me.Recordset and/or Me.RecordsetClone using the Me.Recordset.MoveFirst, .MoveLast, .MoveNext, .MovePrevious, and .FindFirst or .FindNext operations. Some extra safety could be assured for the search options if you do some of that manipulation using Me.RecordsetClone and then copy Me.RecordsetClone.Bookmark to Me.Recordset.Bookmark if your search succeeds.

There is also the issue that "rolling your own" can get your form confused. For instance, a .Requery could make the form momentarily act as though it were unbound. See this link regarding .Recordset operations which includes remedies for that case.

Form.Recordset property (Access)

Office VBA reference topic

learn.microsoft.com

See also this video by Daniel Pineault, who is a recognized expert in Access issues. He produced a directly applicable video on the subject.



[Al Kramer]

Those are Navigation buttons and there are lots of options. Search the web for “ms access custom navigation buttons”

Thanx, will do.



[GPGeorge]

Here's a demo of a simple form that uses "custom" navigation buttons to replace the Access default. You could replace the command buttons with icons in image controls to expand the palette. I rather think I'll try that, in fact.

This one is much simpler than the classes approach Daniel demoes.



[GPGeorge]

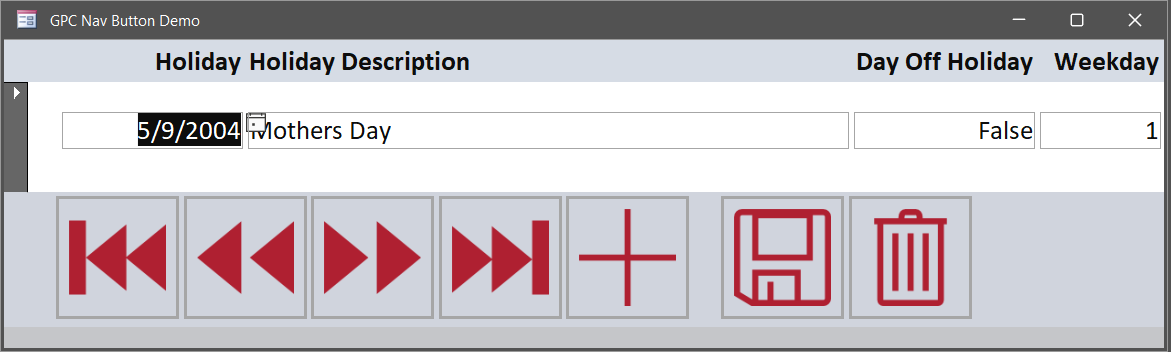

Screenshot of a work in progress, with custom icons in image controls.



[Mike Krailo]

That looks nice @GPGeorge



[DHookom]

Screenshot of a work in progress, with custom icons in image controls.

View attachment 118667

Wouldn't a move of a single record, be a single triangle?



[Mike Krailo]

Wouldn't a move of a single record, be a single triangle?

Usually, good catch.



[GPGeorge]

Wouldn't a move of a single record, be a single triangle

I guess one could prefer a single triangle. I'll look for icons like that. I also couldn't find an icon that matches the "Add New" in the Access Navigation. I would prefer that if I can find one closer to it.



[arnelgp]

here is another demo.
the original code from LPurvis
and extended to use separate form for Adding/Editing record.
main form is called Products.



[Mike Krailo]

That's a pretty good one @arnelgp . You could always modify that hidden subform to have whatever icons you want and make it any size you want as well.
