How to join two tables with relationship

[isladogs]

Yes, I did.
Your attachment is beyond my knowledge in MS Access.
I will try to add some fields in the table tblFacilityRegister, and I will let you know how it helps.

Thanks a lot for your kind efforts.

All you need to do is copy & paste the query SQL into your database!

SELECT tblFacilityRegister.ID, tblFacilityRegister.SenderID, tblFacilityRegister.ReceiverID, tblFacilityRegister.ScannedBy, [tblSenders].[FirstName] & ' ' & [tblSenders.LastName] AS SenderName, [tblReceivers].[FirstName] & ' ' & [tblReceivers].[LastName] AS ReceiverName, [tblScanners].[FirstName] & ' ' & [tblScanners].[LastName] AS ScannedByName
FROM ((tblUsers AS tblSenders INNER JOIN tblFacilityRegister ON tblSenders.UserID = tblFacilityRegister.SenderID) INNER JOIN tblUsers AS tblReceivers ON tblFacilityRegister.ReceiverID = tblReceivers.UserID) INNER JOIN tblUsers AS tblScanners ON tblFacilityRegister.ScannedBy = tblScanners.UserID;

What's difficult about that?

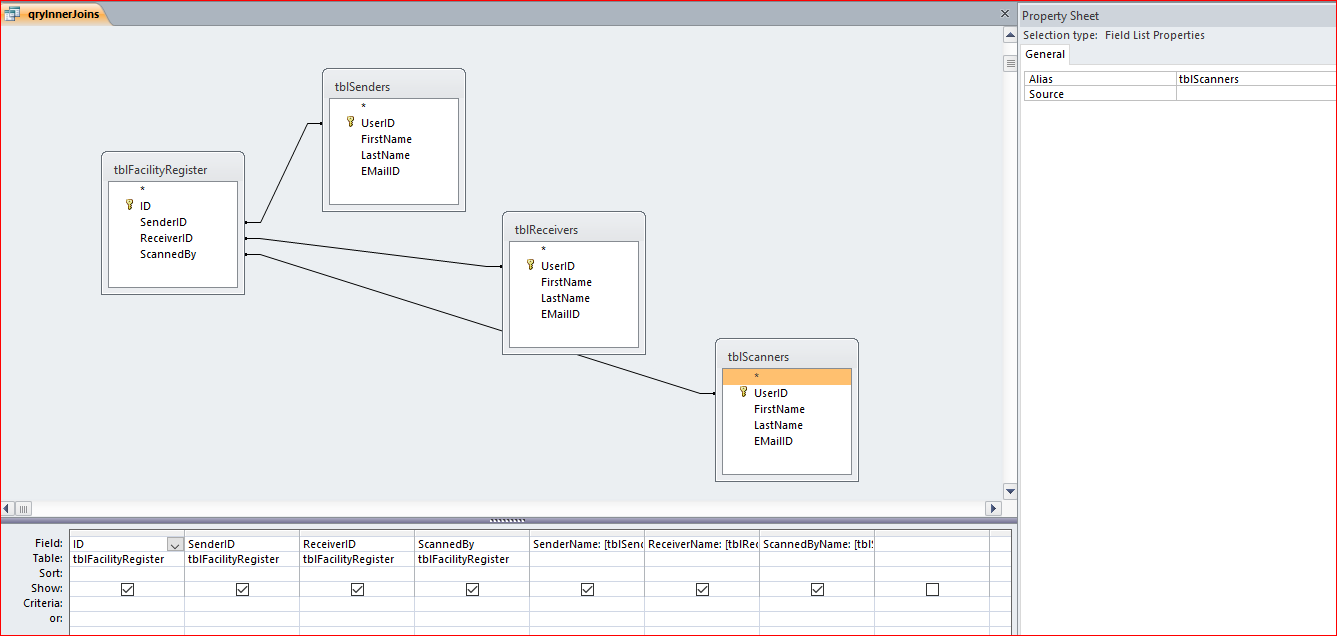

Here's the same query in design view

The 3 tables tblSenders, tblReceivers, tblScanners are 3 copies of tblUsers where I've used an alias to distinguish them



[Pat Hartman]

If all three FK fields are defined as required, this query will be fine but if they are not defined as required, then the joins need to be left joins.



[isladogs]

If all three FK fields are defined as required, this query will be fine but if they are not defined as required, then the joins need to be left joins.

I'd already stated about using outer vs inner joins back in posts 2 & 5.
However, as the OP has decided its all too difficult, it makes no difference anyway!



[Pat Hartman]

It was so long ago I forgot



[Alhakeem1977]

Thank you all for your responses, I got it solved by added Users to the Relationships window three times as " The_Doc_Man " recommended, then I did the same in the query too but I changed the Join Properties option 3.

Thanks again to all for interactions, specifically " ridders " I tried the code you provided I got some issues I do not know from where actually but I if I built my database perfectly it will work for sure.

Best Regards,
Alhakeem1977



[isladogs]

Glad you got it solved .... but what you did sounds exactly like the solution I provided earlier - see post 21



[Alhakeem1977]

Glad you got it solved .... but what you did sounds exactly like the solution I provided earlier - see post 21

Thanks, I see I'm new in MS Access that's why I can't understand many concepts, you are so advanced.

Thank you very much.
