How to make a switchboard (1 Viewer)

[Abigail Florence]

Hi

I would like to create a main menu page that would be the first thing the user sees when opening the database. Instead of having the use open the tables, queries, forms and reports from the navigation pane, I want links on a main menu page to these so that the user has easy navigation. Could you provide detailed instructions on how to go about this please?

Many thanks

AF



[gemma-the-husky]

In my humble opinion, the best way is to get hold of a A2003 switchboard, and switchboard items table.

In this, the switchboard items table has pages of options. Each option can either be a form to use, or a navigation to a different page of options.
The switchboard has all of the code to navigate through the options. When the form first opens it displays the options on page 1.

After A2003, the navigation form worked in a different way, using data macros, and I found it rather difficult to understand and modify.

Here's a sample database with an A2003 switchboard.
I added a US states table and form so I could add some entries to the Switchboard items table.
I added a few more items to the switchboard table so you can see it chaining from 1 menu to another.
Note that you need an item 1 on each switchboard items page.

Command 1 (command value in the items table) changes the active menu page.
Command 3 (command value) opens a form.
There are other command values in the code that I rarely used.

You can copy the switchboard and switchboard items table into any database.
Just set Switchboard as the first form to open.

A2003 came with page manager tools, but it's easier to edit the table directly, I think.



[MajP]

Replacement Switchboard

This Switchboard form is based on the last VBA version which I think was A2k. I expanded it to allow for 12 items rather than 8 and you can easily change it to do more. I've included directions. This updated version has two switchboards. One more traditional and the other is big buttons...

www.access-programmers.co.uk



[gemma-the-husky]

^^^^
I actually got to 25 items, 3 columns of 8, plus a "return".



[Abigail Florence]

Thank you for your detailed responses. Perhaps I wasn't clear enough or i didn't understand your instructions. I have a database screenshot below. Instead of the user having to find the table, form, report or query that they want, I want a main menu page with links to the table, form, report or query for easy navigation. (See sample below). This is the only thing that should come up when the user opens the database. Is there a way to do this?

In my humble opinion, the best way is to get hold of a A2003 switchboard, and switchboard items table.

In this, the switchboard items table has pages of options. Each option can either be a form to use, or a navigation to a different page of options.
The switchboard has all of the code to navigate through the options. When the form first opens it displays the options on page 1.

After A2003, the navigation form worked in a different way, using data macros, and I found it rather difficult to understand and modify.

Here's a sample database with an A2003 switchboard.
I added a US states table and form so I could add some entries to the Switchboard items table.
I added a few more items to the switchboard table so you can see it chaining from 1 menu to another.
Note that you need an item 1 on each switchboard items page.

Command 1 (command value in the items table) changes the active menu page.
Command 3 (command value) opens a form.
There are other command values in the code that I rarely used.

You can copy the switchboard and switchboard items table into any database.
Just set Switchboard as the first form to open.

A2003 came with page manager tools, but it's easier to edit the table directly, I think.

I tried what you attached but it didnt work to my favor perhaps there are other ways?
How to you 'set Switchboard as the first form to open'?

many thanks for your guidance.
Abigail



[bob fitz]

How to you 'set Switchboard as the first form to open'?

See: https://support.microsoft.com/en-us...database-94961011-392f-4c3b-8dbc-e5d5adbff1df



[Uncle Gizmo]

@Jon , The owner of this forum created some excellent videos for beginners and one of the videos demonstrates how to create a switchboard form.

It's in the forms section on this page and it's the 5th item down.

Microsoft Access Video Tutorials – Access World



[Abigail Florence]

Thanks for that!

Is it possible to link tables and queries as well as forms onto the switchboard?

I made a hyperlink but I am sure there is a more sophisticated approach?



[gemma-the-husky]

Thanks for that!

Is it possible to link tables and queries as well as forms onto the switchboard?

I made a hyperlink but I am sure there is a more sophisticated approach?

You wouldn't really want to. 100%. A user should never be able to open a table directly for interactive use.
You don't want anyone to use tables or queries directly, not even yourself, other than during development.
Therefore you also don't want to display the navigation panel, as you have done.

If necessary, present a datasheet form, or maybe offer a way to view a table in readonly mode.

Making these objects available through forms gives you more control over the data, and the application.

You can add processes to the forms to prevent erroneous data and other mistakes being made. Your forms can relate multiple tables together in a way that you just couldn't do using tables directly.

You could easily modify the code to provide a different command number for a table or query, but I can't think I have ever needed to do that. There are a few other commands included in the code for the switchboard form besides 1 and 3, but they are the main ones I use. I tend to run reports through a report selector form, so reports aren't shown separately on my menus, and I can manage date ranges and other filters more easily with a form. There is a menu command option to run a report, though.



[Uncle Gizmo]

Is it possible to link tables and queries as well as forms onto the switchboard?

Yes, but you don't do it directly. You put the query or the table in a form, in datasheet view, and show the user that.



[Uncle Gizmo]

Is it possible to link tables and queries as well as forms onto the switchboard?

Video number 4 on my website demonstrates opening a query from a command button:-

VBA Beginner – Nifty Access

www.niftyaccess.com

But please note earlier comments, it is recommended that you don't. Display the data in a form in datasheet view.....



[Pat Hartman]

I updated the link to my switchboard samples. There is now a third sample in the list. There is also a new form that lets you manage tblSwitchboardItems.

Replacement Switchboard

This Switchboard form is based on the last VBA version which I think was A2k. I expanded it to allow for 12 items rather than 8 and you can easily change it to do more. I've included directions. This updated version has two switchboards. One more traditional and the other is big buttons...

www.access-programmers.co.uk

@Abigail Florence You're pretty new here so welcome. You've gotten some excellent advice as well as samples in addition to mine. The problem I find with button switchboards is they have an annoying problem of having to change. Do you want to make changing the switchboard form your life's work or do you want to use a data driven list which is much easier to maintain? If you really like buttons, take a look at the big button sample. Personally, I use the continuous version since when you use security which is included in a more advanced version, you can use security to control what each user sees so they essentially get personalized switchboards.



[isladogs]

I long ago gave up on the built-in Access switchboard and created my own both for ease of use and to allow a virtually unlimited number of options from one form:

In the most extreme case, one of my commercial databases for schools has a main form with a potential of 406 options though in reality there are about 350 in use

The form has 3 columns of buttons:
a) the middle column has a possible 20 buttons. Clicking any of those displays a right hand column of up to 20 buttons: 20*20=400
b) in addition there are 6 stand-alone buttons in the left column : 400+6 = 406

In addition, the options displayed will depend on the role/permissions of the end user

Coding this is no more difficult than the old switchboard!

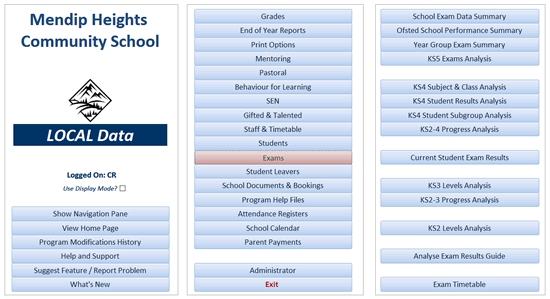

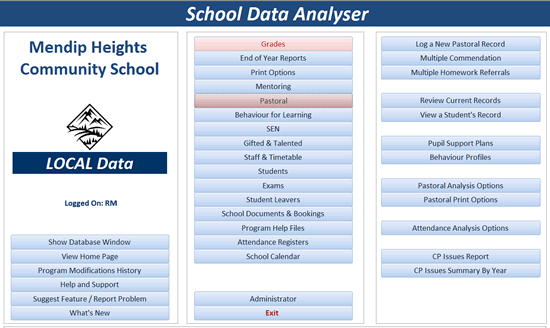

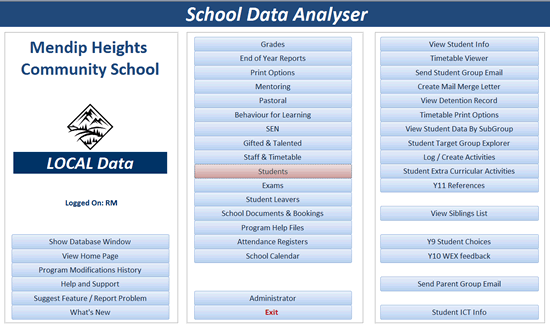

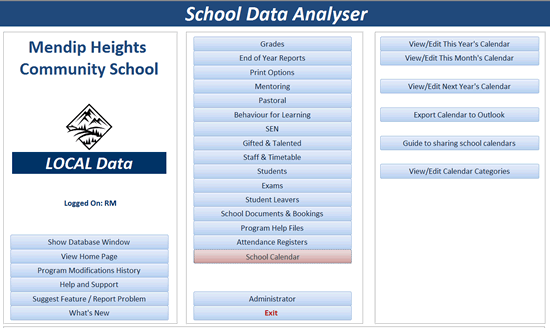

Here are a few random screenshots of this main form to illustrate its capabilities
