Removing Duplication in Complicated Report (1 Viewer)

[cosmarchy]

Hi,

I have a complicated question which I'm trying to describe simply, so will initially start with the data.

The data I need to represent on the report is contained within three tables. I have managed to cobble together a query which displays the data but there is a lot of duplication which I want to remove for a report so that it is simpler to read and understand.

The three tables are OVR, BND and FNT. For each record in OVR.AAA, I need to find which values lies between BND.B and BND.C
I then need to join BND.ID to FNT.id to list the records which correspond to the values from BND.

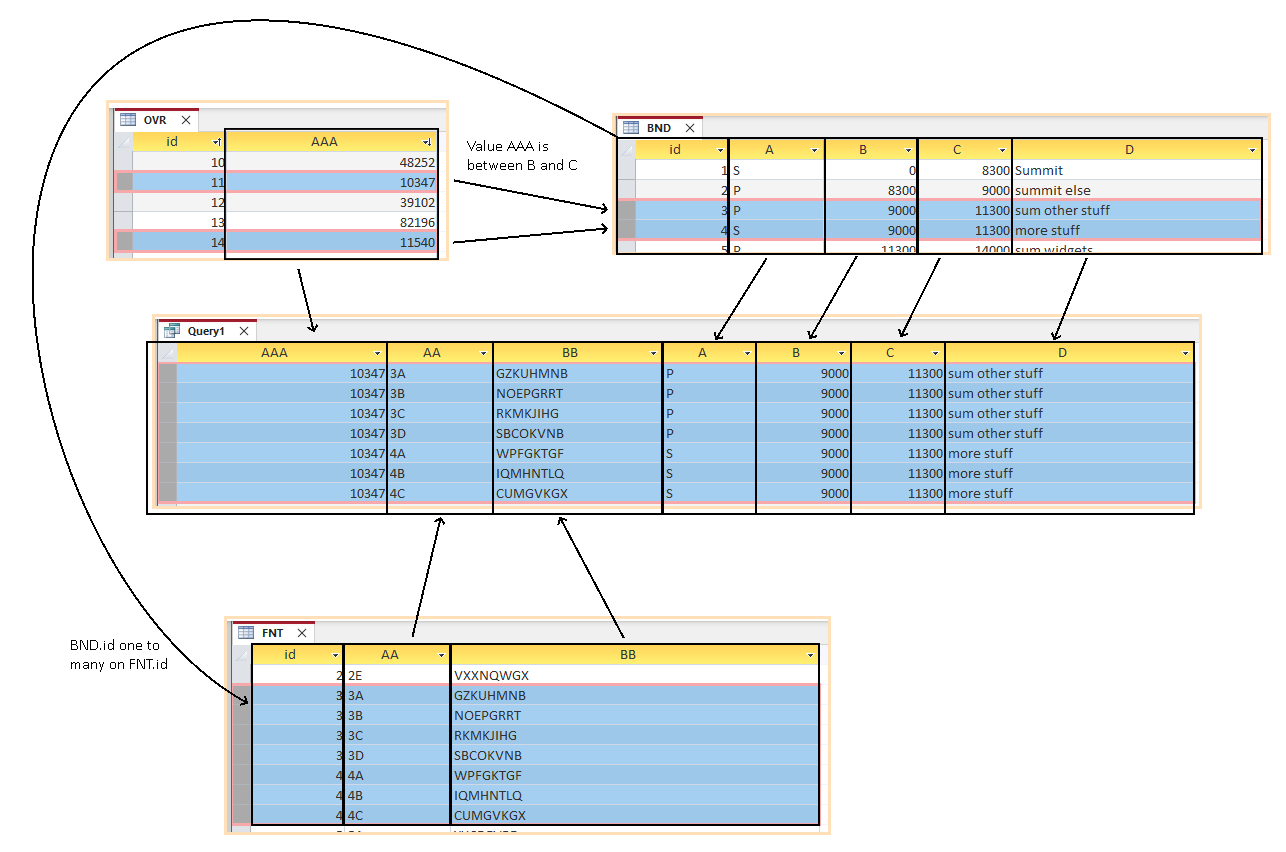

This is briefly summarized here:

Query1 is constructed by:

SELECT ovr.AAA, FNT.AA, FNT.BB, BND.A, BND.B, BND.C, BND.D
FROM (BND INNER JOIN FNT ON BND.id = FNT.id) INNER JOIN OVR ON (ovr.AAA <= BND.C) AND (ovr.AAA >= BND.B);

Now the complicated part, the report.

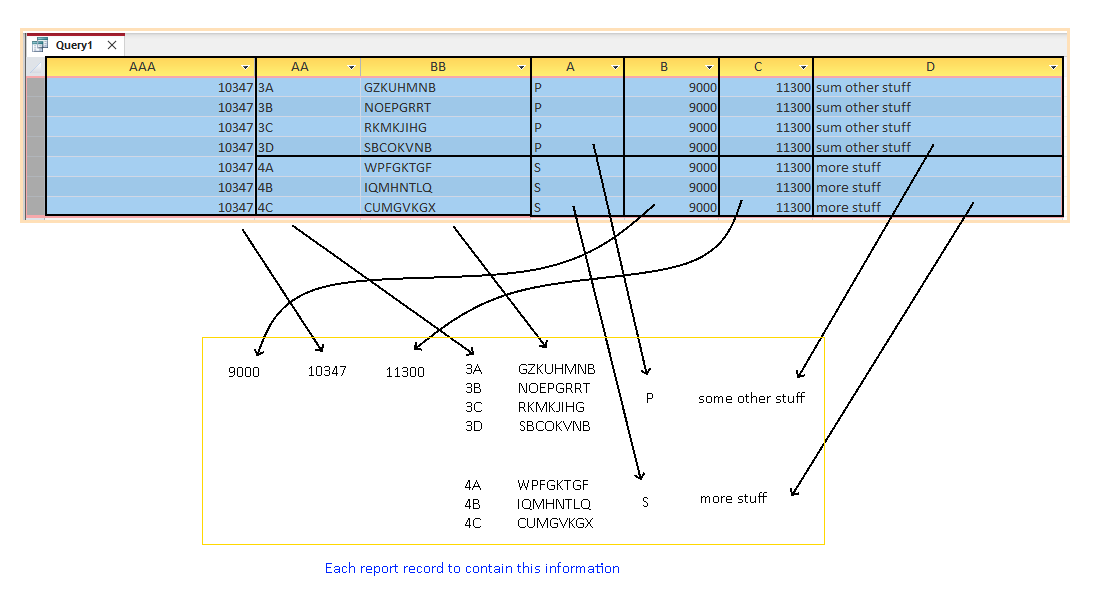

Taking just one entry from the query, I've highlighted the areas where the duplication occur which I want to remove:

I want each record to contain the contents of the yellow rectangle. I don't need the duplicate entries from columns AAA, AA, BB, A, B, C & D - I only need each text to appear once.

The actual layout isn't too important in that I have missed the column title labels off but I'm trying to simplify the question.

What is the best way to achieve this? Would nested queries, each filtering out the duplication and then link a report? Or would nested reports be the way to go?

I've attached the database as it contains more data for context.

Many thanks



[GPGeorge]

Over the years, I've observed that, all too often, attempts to simplify actually obscure reality to the extent that it is harder, not easier, to follow a problem. I know you put a lot of effort into this, but it's actually counter-productive and tends to scare off would-be helpers.



[Gasman]

I have google on this laptop.
However the entries will have to exist on the FIRST one found, not halfway down as you are showing.

Hide duplicate values in a grouped Access report | TechRepublic

Hiding duplicates values in a report might have unexpected consequences, but there's an easy fix! Susan Harkins shows you how.

www.techrepublic.com



[Pat Hartman]

Whenever you have multiple rows in tblA that match multiple rows in tblB, you end up with "duplication" since every row from tblA shows each match in tblB.

So - the question becomes - WHY do you have TWO rows in tblB with the same range? Once you can answer that, we can get to how to figure out which ONE you want to match with.



[plog]

Agree with GPGeorge *10. I just can't keep A, AA, AAA straight in my head to try and grasp your issue.

I'm looking at your database query when I filter it to AAA=10347 I see 7 results. Is that what you want? If not, how many records do you expect to see and which ones are they?

Additionally looking at your query why do both of the JOIN conditions include the =

...(ovr.AAA <= BND.C) AND (ovr.AAA >= BND.B);

That's gonna cause duplication in another manner. Right now you have duplicates because you have duplicate ranges in BND. When both of the above use the equal signs (>= and <=) and a record from OVR has a value that is at the end of one range and the beginning of another, it's going to match both those ranges. For example a record in OVR where AAA=8300 will match both BND.id=1 and BND.id=2. It seems like you either need to drop either <= to < or >= to >.



[cosmarchy]

Tables BND and FNT are simplified versions of the published data. Table OVR is a table which is generated by an application where the intention is to match the records from OVR.AAA where the value is between BND.B and BND.C

So in the above example 10347 from OVR.AAA is between 9000 from BND.B and 11300 from BND.C

Table BND.ID is linked to table FNT.ID. Table BND has two records which match the values between 9000 and 11300 corresponding to an ID of 3 & 4.

Table FNT subsequently has a number of records returned for IDs of 3 & 4.

Hence there is duplication in a couple of areas and the main reason for wanting to remove this is the actual dataset that will be worked with will contain thousands of characters of text for some of these columns and hundreds of duplicate values.
Given this is a safety related issue, it makes sense to make it easier for the end user to read and not just glance over after seeing the number of pages in a report and thinking OMG.



[plog]

I still don't understand. Here's a shot of Query 1 of the database you posted filtered to AAA=10347:

I assume that is too many results. Which of those do you expect to be returned by the query and why?

You keep mentioning duplicates, but from a technical perspective there are no duplicates--every record is unique. I understand to you with a better understanding of the data there might be "duplicates" but you need to explain to me what constitutes a duplicate and why?



[Pat Hartman]

Before you can remove the "duplicates", you need to understand what is causing them and so far, we don't.



[Space Cowboy]

There are no duplicates there.
Certain fields are repeated as the information is extracted that way.
it seems to be a problem that you need to sort out in a report or something

you want to split the information
for each AAA at condition between B and C printed once
And the qualifiers listed individually
aa, bb, a, d, and then further grouped or sorted by, a

I wish that I could tell you the code to sort out the problem but don,t know. But I can see exactly what you mean. your query is good but it needs presenting in a visually more appealing format. gasmans post seems to have part of your solution.

separating the 3a and 4a from the same field could be another problem that will arise.

2 queries night be needed
on field a
1 that sorts p
1 that sorts s

the report combined from both if that is possible



[ebs17]

I can't open your database, I use Acc2010.
So just the pictures:

A table representation as you requested is not the usual, there are no standard means for this, if you really want to solve it exactly like that, it will be incredibly complex. Maybe you can then create your report output using other things like Excel.

If we stick with Access:
As correctly stated, there are no duplicates (=> across entire records), just repeating individual values, which is technically justified.

1) You can insert a subreport in a report, and another subreport in this subreport. That would be typical database technology, but you have something other than a single table.

Report1 contains the fields AAA, B, C in the RecordSource
Subreport1 contains the fields A and D as well as AAA in the RecordSource for linking
Subreport2 contains the fields AA and BB as well as AAA in the RecordSource for linking

2) It also seems possible to display it directly in a table using a query. I believe that this would require determining different running numbers using different field combinations and then using these to set field combinations with a running number greater than 1 to ZERO.

This is extremely time-consuming, however. I would only start something like this if I were to receive a significant, non-repayable advance payment for pain and suffering.



[Pat Hartman]

If the data is imported from another source, you don't have to live with it the way it is. You can normalize it on import and that may solve your problem



[cosmarchy]

Ok, so I'm nearly there now apart from an inconsistency in ordering.

I decided that the easiest way was to break down into a number of smaller problems as suggested earlier although I chose smaller queries which were bound to (sub)reports rather than smaller reports.

In the attached database, Report 1 contains sub-reports 2 and 3 which reports all the data in the right order apart from the odd occasion where the report order switches:

this is strange behaviour because most of the time the order is correct:

The underlying queries (Q1 drives Report 1, Q2 drives Report 2 and Q3 drives Report 3) all have the same order (ascending).
And, when I run the queries they are all in the correct order so I'm not understanding why somewhere between the query and the report the order changes.



[Gasman]

Are you expecting the BB to be sorted, as your last pic shows it is incorrect?
Access reports take NO notice of source order, needs to be sorted in the report.



[Space Cowboy]

Are you trying to identify a band?
measure the value
determine which band it falls into?
rising to the band and descending to the band/value?



[cosmarchy]

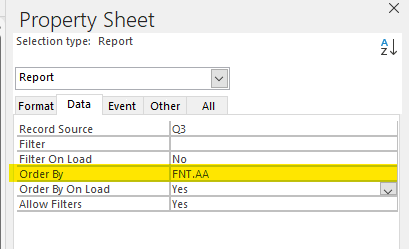

I've been playing around with the Reports OrderBy property and it looks like there is inconsistency.

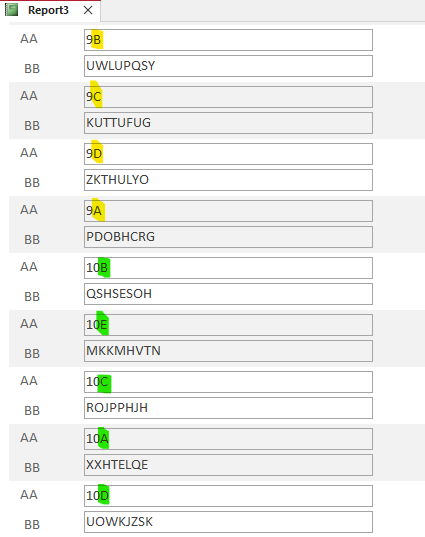

With the property blank and opening Report 3 in an attempt to narrow down the issue:

The order of the alphanumeric part is not correct as it should follow A, B, C etc

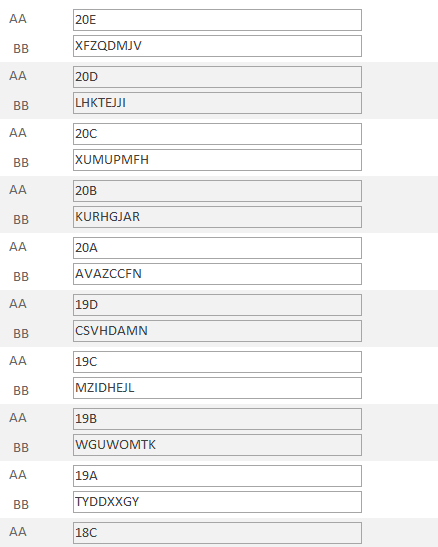

Opening Report 1, I can see that not only is is the order incorrect as the records should be 9 then 10 but also the alphanumeric order also changes:

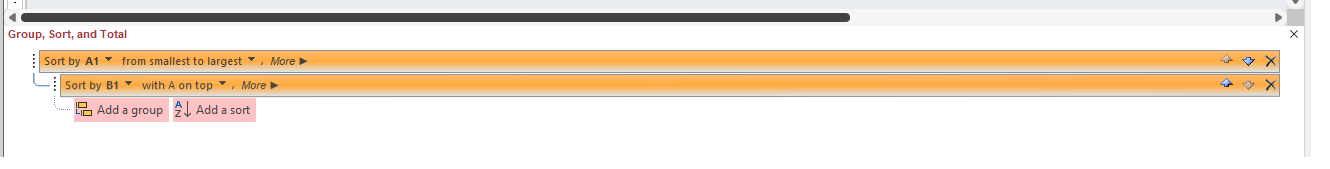

Once I've set the sort order in Report 3:

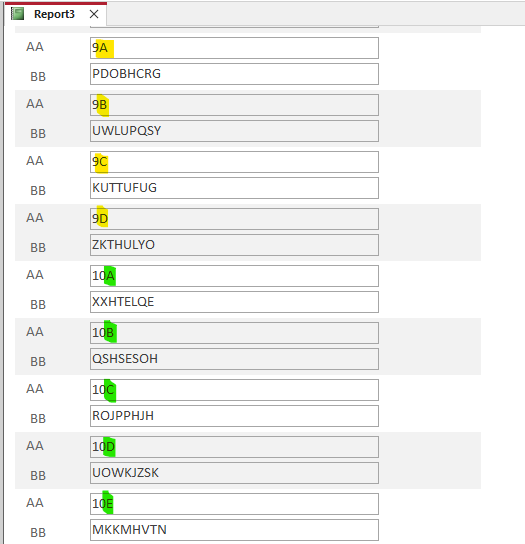

and re-open Report 3 we can see that the alphanumeric parts are correct:

and now opening Report 1 we can see that although the alphanumeric parts are correct the 9 and 10 are the wrong order.

so, it appears the Order By property is doing something however it looks like it is doing something different depending on whether you open Report 3 or Report 1 which contains Report 3.

The assumption would be that if Report 3 has the correct order, then opening Report 1 which contains Report 3 as a sub-report then it should behave the same???



[Pat Hartman]

I don't understand what you are saying. Strings are sorted character by character, left to right. Are you saying that 9A comes before 10A? it doesn't because 9 is not less than 1.

Sorting verges on impossible when you mush columns together. If the trailing letter is significant, it can't be last. You need to break the single field into two and then you can sort the letters first and the numbers second if that is how you want them to sort.

Also, as @Gasman pointed out, you need to specify the sort using the reports sorting/grouping property dialog.
